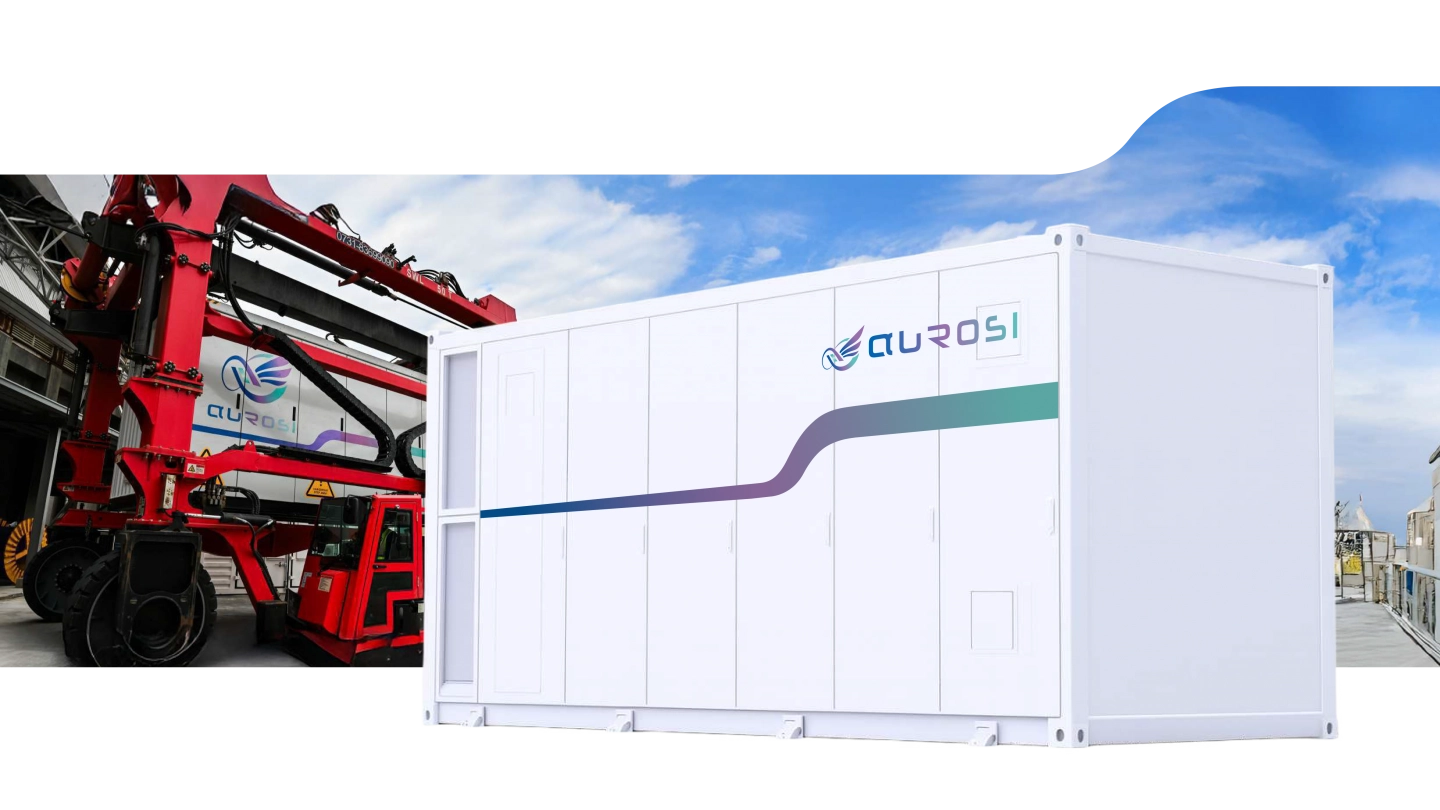

CXS-5MWB
Efficient, Safe, and Stable Energy Solutions
The CXS-5MWB Battery Energy Storage System is a cutting-edge solution in energy storage technology, designed for high performance, safety, and stable power delivery—making it suitable for a wide range of energy applications.
Ultra Capacity
ㆍ5015.9 kWh capacity with four high-efficiency battery modules per rack.
ㆍOperates at 1331.2V, with a voltage range of 1040V to 1497.6V for stable power delivery.
ㆍMaximum charge/discharge power of 2507.5 KW ensures reliable energy during critical times.
Exceptional Adaptability
ㆍOperating temperature range: 15-45°C, ensuring stable performance in extreme conditions.
ㆍHumidity tolerance: 5%-95%, adaptable to various climate environments.
ㆍ Liquid cooling system: Maintains optimal temperature, extends battery life, and improves efficiency.
Top-Tier Safety
ㆍIP55 rating provides strong dust and water resistance for long-term stable operation.
ㆍDual fire protection system: aerosol extinguishers and automatic sprinklers ensure comprehensive safety.
左右滑動看表格| Item | Specification | NOTE |
| Battery Container Model | CX-BG3140120005015-BL | |
| Number of Packs per Rack | 4 | Rack: CX-BG314004A41R418-BL |
| Dimension (W x D x H) (mm) | 6056 x 2438 x 2896 | ±10mm |
| Nominal Capacity (Ah) | 314 | 0.5P, 100%DOD, 25±2 C |
| Nominal Capacity (kWh) | 5015.9 | 0.5P, 100%DOD, 25±2 C |
| Nominal Voltage (V) | 1331.2 | |
| Voltage Range (V) | 1040 ~ 1497.6 | 25±2 C, 100%DOD, 2.5V~3.6V |
| Maximum Charging / Discharging Power (kW) | 2507.5 | 0.5P, 25±2 C |
| Working Temperature (°C) | 15 ~ 45 | Charging power ≤0.5P |
| Working Humidity (%) | 5 ~ 95 | |
| IP Class | IP55 (Battery Room) IP55 (Electrical Room) |
|
| Cooling Method | Liquid Cooling | |
| Fire Suppression System | ● Aerosol Fire Extinguishers ● Sprinkler fire extinguishing system |
|
| Weight (kg) | 43500±500 |
