International Quality Certification
Certified by [JC-STAR] Standards
This system has passed rigorous international certifications, ensuring that its safety and grid stability under high-performance operation comply with global energy storage industry regulations.
Efficient, Safe, and Stable Energy Solutions

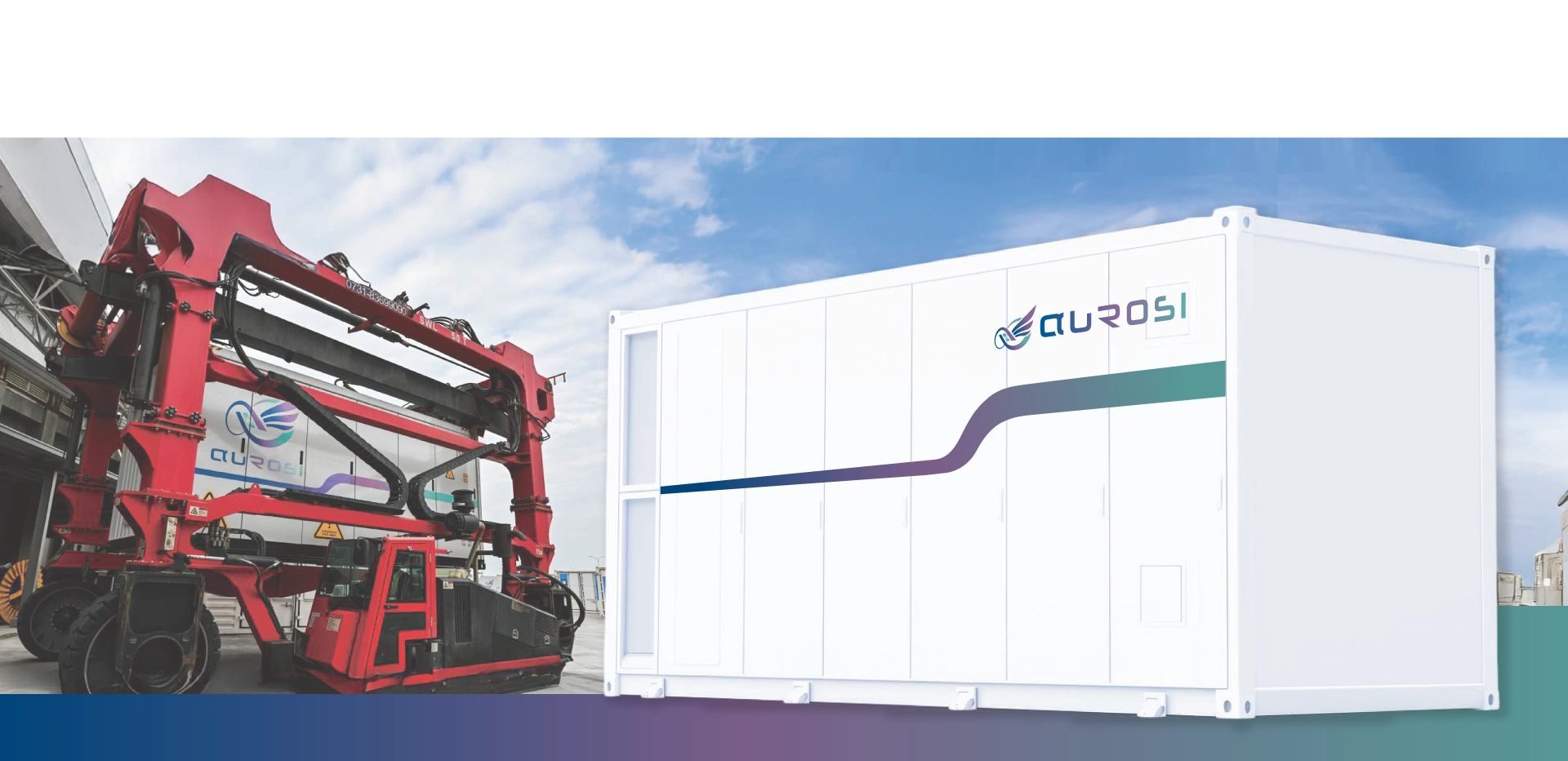

The CXS-5MWB Battery Energy Storage System is a cutting-edge solution in energy storage technology, designed for high performance, safety, and stable power delivery.
Ultra Capacity
- 5015.9 kWh capacity with four high-efficiency battery modules per rack.
- Operates at 1331.2V (Range: 1040V–1497.6V) for stable power delivery.
- Max charge/discharge power of 2507.5 kW for critical energy reliability.
Exceptional Adaptability
- Operating temperature: 15–45°C, ensuring stability in extreme conditions.
- Humidity tolerance: 5%–95%, adaptable to various climates.
- Liquid cooling system maintains optimal temperature and extends battery life.
Top-Tier Safety
- IP55 rating provides strong dust and water resistance for long-term operation.
- Dual fire protection: Aerosol extinguishers and automatic sprinklers for comprehensive safety.
Product Specifications
| Item | Specification | Note |
|---|---|---|
| Battery Container Model | CX-BG3140120005015-BL | |
| Packs per Rack | 4 | Rack: CX-BG314004A41R418-BL |
| Dimension (W x D x H, mm) | 6056 x 2438 x 2896 | ±10mm |
| Nominal Capacity (Ah) | 314 | 0.5P, 100%DOD, 25±2°C |
| Nominal Capacity (kWh) | 5015.9 | 0.5P, 100%DOD, 25±2°C |
| Nominal Voltage (V) | 1331.2 | |
| Voltage Range (V) | 1040 ~ 1497.6 | 2.5V~3.6V |
| Max Charging / Discharging Power | 2507.5 kW | 0.5P, 25±2°C |
| Working Temperature | 15 ~ 45°C | Charging power ≤0.5P |
| Working Humidity | 5% ~ 95% | |
| IP Protection Class | IP55 (Battery Room) IP55 (Electrical Room) |
|
| Cooling Method | Liquid Cooling | |
| Fire Suppression System | ● Aerosol Extinguishers ● Sprinkler System |
|
| Weight (kg) | 43500 ± 500 |
Notice: Final specifications may vary. Some parameters are subject to change.
