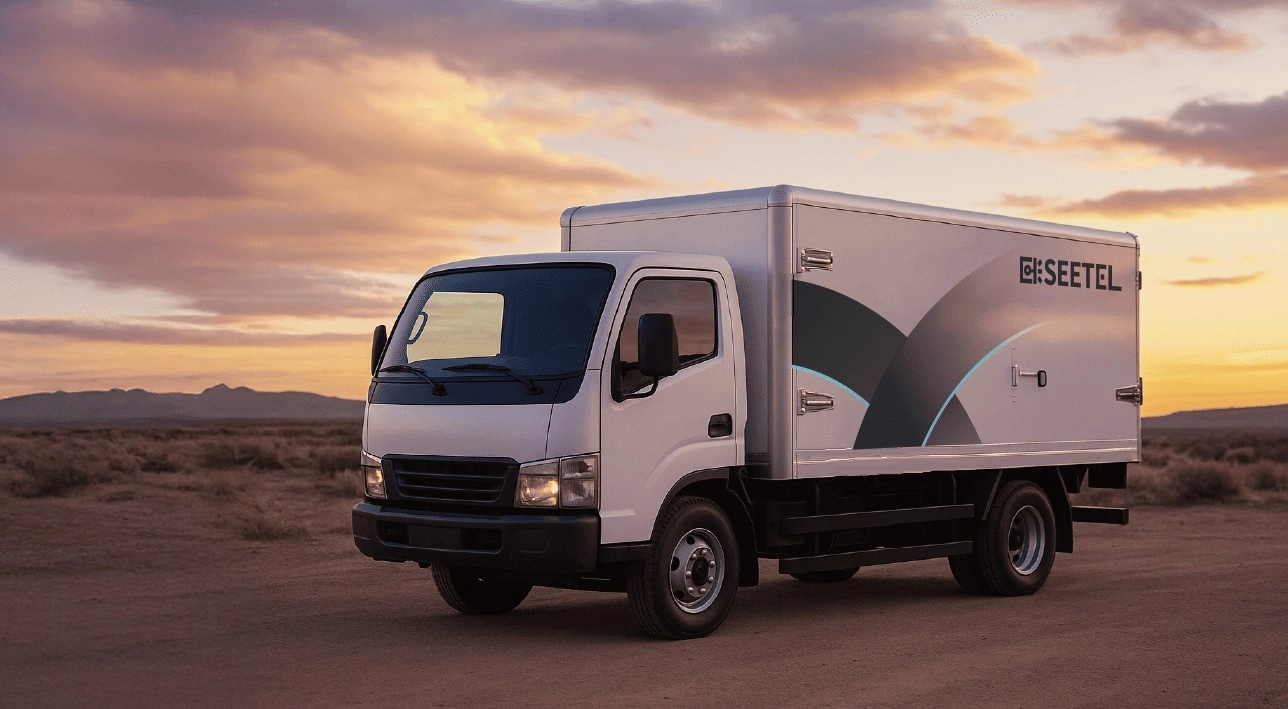

MOBILE CHARGER with Battery 270 kWh

  • Weight： 4924.7 kg

  • Capacity range： up to 270 kWh

  • Power output： balance distribute (CCS2)




MOBILE CHARGER with Battery 270 kWh – Defining Safety with Intelligent Energy Solutions!

Equipped with real-time insights and adaptive learning, our EMS accelerates energy forecasting and optimizes dispatch with exceptional precision. As a reliable mobile charging solution, it supports diverse electric equipment needs—from boost charging and temporary charging stations to on-demand recharging services.




Battery & Electrical Safety

· High Voltage Isolation

· Multi-layer Battery Protection

· Thermal & Fire Safety

Protective Safety Mechanisms

· Auto Power Cut-off During Driving

· Abnormal Charging Shutdown Protection

· Door/E-stop Interlock

Charging Control & On-site

· Charging Connector Management

· Multi-protocol Compatibility

· User-friendly Interface

RemoteMonitoring, Maintenance & Cybersecurity

· Real-time Remote Monitoring

· Predictive Maintenance

· Cybersecurity & Data Backup

AI-driven diagnostics and predictive maintenance

· Rescue Demand Prediction

· Battery Health Forecasting

· Smart Charging Optimization

Billing & Cost Management

· Flexible Pricing Models

· External Billing & E-Invoicing

· Customer Account & Billing Records





Mobile Charging Solution

It is a reliable mobile charging solution designed to meet diverse electric equipment needs, including boost charging, establishing temporary charging stations, or delivering on-demand recharging services.

Smart EMS, Swift Response

Equipped with real-time insights and adaptive learning,EMS accelerates energy forecastingand optimizes dispatch with unmatched precision.



左右滑動看表格
System Specification
Battery Chemistry NCA (Nickel Cobalt Aluminum) - Cylindrical Cell
Total Installed Energy 270 kWh (90 kWh * 3)
Rated Capacity 289.38 Ah
System Voltage (Min/Nom/Max) 500 V / 660 V / 750 V
Continuous Charging Rate 0.5C
Continuous Discharging Rate 1C
Ambient Operating Temperature -20*C to +40*C
Max Operating Altitude 3,000 meters
Cooling System Type Compressor (Active Cooling Unit)
Fire Suppression System Aerosol Fire Extinguishers
AC Input Voltage 220V / 380V AC, 3-phase,50-60Hz +15%
Charging Time Approx. 7-8 hrs at 90A, 410V,3-phase
Input Plug Type CEE plug 100A
Container Dimension (LxWxH) 4150x2100x1300 mm

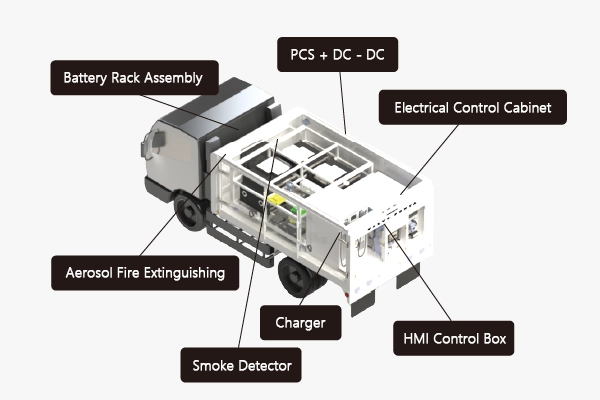

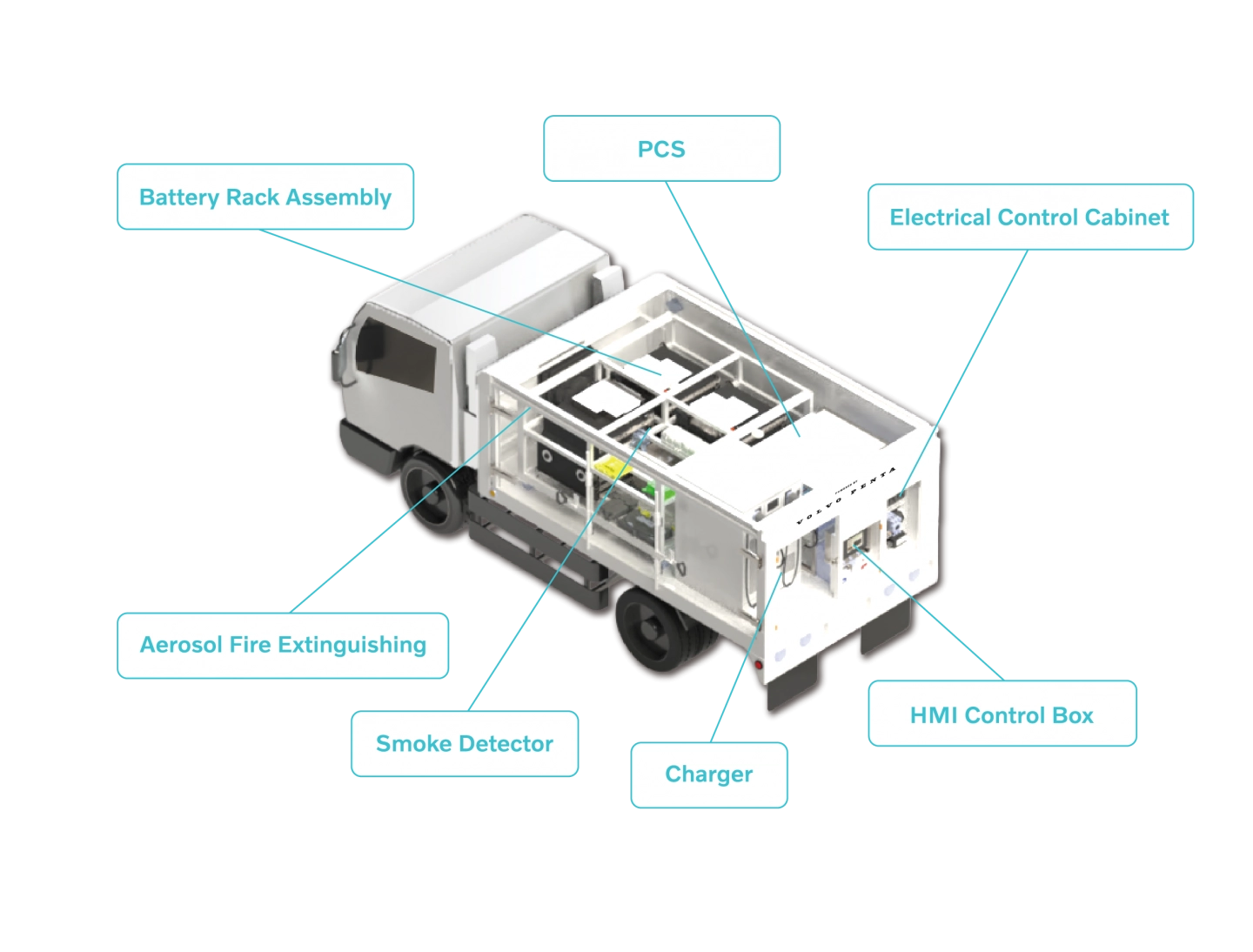

Charger Weigh of BESS Components
Max Power 180 kW Battery*3 1,599 kg
Simultaneous Output Balance distribute Battery Rack 260 kg
Efficiency > 94% Heater_BESS 5.7 kg
Charger Plug Type CCS2 Expansion Tank 2.53 kg
    Contro Unit - HCPU-ECM4_BESS 1.9 kg
    Contro Unit - TGW3_BESS 1.2 kg
    Cooling Package_BESS 50 kg
    DC-DC_BESS 14.9 kg
Vehicle Junction Box 1.27 kg
Gross Vehicle Weight 5,000 kg Pump Unit_BESS 3.2 kg
Chassis Curb Weight (Approx.) 2,120 kg Charger 265 kg
    Power Control Pane 20 kg
    HMI Panel Assembly 15 kg
    Charger Frame 80 kg
Total
4924.7 kg


左右滑動看表格
Key Differences Between MOBILE CHARGER with Battery 540 kWh and 270 kWh
MOBILE CHARGER
Capacity 540 kWh 270 kWh
Application Scenarios Construction sites, mining sites, and remote areas without grid access. General charging services, fleet support, and temporary event power supply.
Charging Equipment Electric excavators, electric wheel loaders, and heavy-duty equipment Electric Vehicles (EVs), small utility vehicles, and electric logistics vehicles.
