MOBILE CHARGER For Construction Equipment

  • Weight： 5708.7 kg

  • Capacity range： up to 540 kWh

  • Power output: up to 180 kW (CCS2)


SEETEL CE – Safe, Easy-to-use & Smart

SEETEL Mobile Charger for Construction Equipment features a portable, easy-to-use design, enabling flexible deployment across any construction site to effectively solve energy usage challenges such as intermittent power supply, high consumption, and on-site inefficiencies. Powered by an advanced EMS, it seamlessly integrates real-time monitoring, AI diagnostics, and risk prevention to significantly reduce failure risks. With autonomous detection and recovery, it ensures long-term system stability. Combined with remote monitoring, cybersecurity, and fire emergency response, it delivers comprehensive energy protection.








Safety Strategy

Our EMS employs advanced software-driven security mechanisms to ensure real-time monitoring, intelligent diagnostics, and automated risk prevention, significantly reducing failure risks.



AI-driven diagnostics and predictive maintenance

The AI proactively monitors voltage fluctuations, current anomalies, temperature variations, and insulation resistance changes, issuing warnings and implementing corrections before failures occur.

Autonomous fault detection
and automatic recovery

Real-time battery voltage monitoring ensures stable operation.
The BMS automatically adjusts current output to prevent overcharging and over-discharging.

Remote monitoring and cybersecurity protection

Operators can access system status and remotely manage devices via a web console or mobile app anytime, anywhere

Immediate fire alerts and
emergency response

Utilizes smoke, thermal, and gas sensors to
detect potential  fire risks in real time.




Portable and Easy-to-use

It is portable, easy-to-use and can charge everything fromVolvo compact electric machines to other electrical equipment on-site.

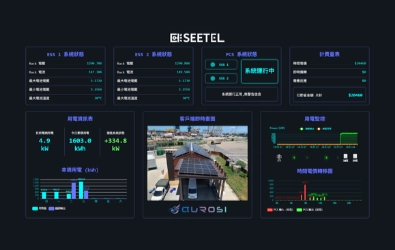

Smart EMS, Swift Response

Equipped with real-time insights and adaptive learning,EMS accelerates energy forecastingand optimizes dispatch with unmatched precision.





左右滑動看表格
System Specification
Battery Chemistry NCA (Nickel Cobalt Aluminum) - Cylindrical Cell
Total Installed Energy 540 kWh (90 kWh * 6)
Rated Capacity 578.76 Ah
System Voltage (Min/Nom/Max) 500 V / 660 V / 750 V
Continuous Charging Rate 0.5C
Continuous Discharging Rate 1C
Ambient Operating Temperature -20*C to +40*C
Max Operating Altitude 3,000 meters
Cooling System Type Compressor (Active Cooling Unit)

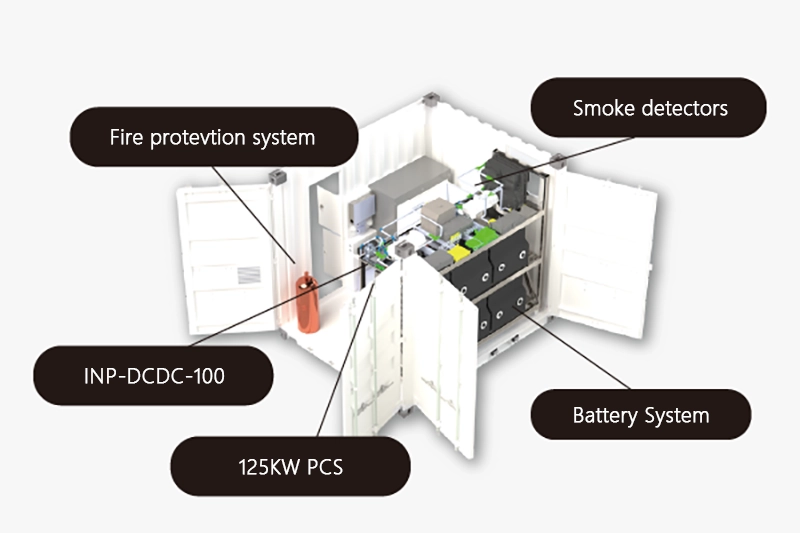

Fire Suppression System Aerosol Fire Extinguishers
AC Input Voltage 220V / 380V AC, 3-phase,50-60Hz +15%
Charging Time Approx. 7-8 hrs at 90A, 410V,3-phase
Input Plug Type CEE plug 100A
Container Dimension (LxWxH) 3000xx2200x2600 mm
Weigh of BESS Components
Battery*6 3,198 kg Battery Rack 470 kg
Heater BESS  5.7 kg Expansion Tank 2,53 kg
Control Unit- HCPU-ECM4_BESS 1.9 kg ControI Unit - TGW3_BESS 1.2 kg
Cooling Package_BESS 50 kg DC-DC_BESS 14.9 kg
Junction Box 1.27 kg Pump Unit_BESS 3.2 kg
DC-2 300 kg 125KW PCS 70 kg
INP-DCDC-100/0.3-W-1-B2-OS 25 kg Power Control Pane 20 kg

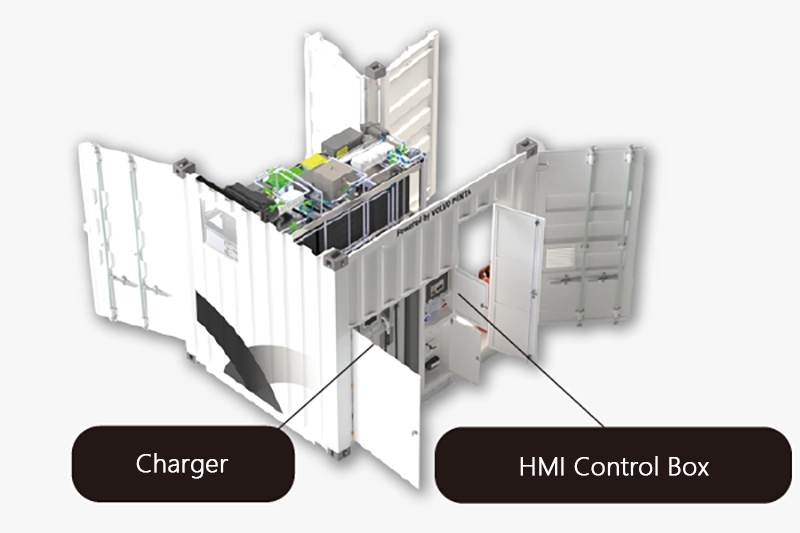

Charger Frame 80 kg HMI Panel Assembly 15 kg
Charger Container
Max Power 180 kW Container Weight 1,450 kg
Simultaneous Output Balance distribute
Efficiency > 94%
Charger Plug Type CCS2
Total
5708.7 kg


左右滑動看表格
Key Differences Between SEETEL CE (540 kWh) and SEETEL Battery (270 kWh)
MOBILE CHARGER
Capacity 540 kWh 270 kWh

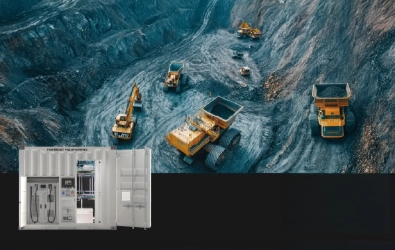

Application Scenarios Construction sites, mining sites, and remote areas without grid access. General charging services, fleet support, and temporary event power supply.
Charging Equipment Electric excavators, electric wheel loaders, and heavy-duty equipment Electric Vehicles (EVs), small utility vehicles, and electric logistics vehicles.
